前に、Apache2.4.25とOpenSSL1.1.0のインストールで挫折(Apache2.4.25がOpenSSL1.1.0に対応していなかったこともあり)したので、今回は、最新のApache2.4.27でトライ。
⇩ 下記サイトを参考にさせていただきました。
・Apache httpd 2.4.27 + mod_http2 インストールメモ | あぱーブログ
環境は、Windows 10 Homeでございます。
DockerでCentOS7.3のコンテナを準備
まずは、Dockerの仮想マシンを起動します。 利用可能な仮想マシンの一覧は、
docker-machine ls
今回は、defaultという名前の仮想マシンを使います。
docker-machine start default
いきなりのエラー!
Starting "default"... (default) Check network to re-create if needed... (default) Windows might ask for the permission to create a network adapter. Sometimes, such confirmation window is minimized in the taskbar. (default) Found a new host-only adapter: "VirtualBox Host-Only Ethernet Adapter #2" (default) Windows might ask for the permission to configure a network adapter. Sometimes, such confirmation window is minimized in the taskbar. (default) Windows might ask for the permission to configure a dhcp server. Sometimes, such confirmation window is minimized in the taskbar. (default) Waiting for an IP... Machine "default" was started. Waiting for SSH to be available... Detecting the provisioner... Started machines may have new IP addresses. You may need to re-run the `docker-machine env` command.
『docker-machine env 仮想マシン名』を実行しろとあるので、
docker-machine env default
エラー!!!
Error checking TLS connection: Error checking and/or regenerating the certs: There was an error validating certificates for host "192.168.99.100:2376": x509: certificate is valid for 192.168.99.101, not 192.168.99.100 You can attempt to regenerate them using 'docker-machine regenerate-certs [name]'. Be advised that this will trigger a Docker daemon restart which might stop running containers.
『docker-machine regenerate-certs 仮想マシン名』を実行しろとあるので、
docker-machine regenerate-certs default
『y/n』と聞かれるので、『y』を入力しEnter。
Regenerate TLS machine certs? Warning: this is irreversible. (y/n): y Regenerating TLS certificates Waiting for SSH to be available... Detecting the provisioner... Copying certs to the local machine directory... Copying certs to the remote machine... Setting Docker configuration on the remote daemon...
dockerコマンドを使おうとすると、
docker ps error during connect: Get http://%2F%2F.%2Fpipe%2Fdocker_engine/v1.29/containers/json: open //./pipe/docker_engine: The system cannot find the file specified. In the default daemon configuration on Windows, the docker client must be run elevated to connect. This error may also indicate that the docker daemon is not running.
と怒られるので、docker-machineが動いてるか確認
docker-machine active
動いてるDockerホスト(仮想マシン)は見つからないとなるので、
No active host found
Dockerホストに環境変数を適応させます。
eval $(docker-machine env default)
改めて、『docker-machine active 』を実行。
docker-machine active default
仮想マシン名が表示されればOK。コンテナの元となるイメージをdocker-hubから取得します。
docker pull centos:latest 7b6bb4652a1b: Pull complete Digest: sha256:c1010e2fe2b635822d99a096b1f4184becf5d1c98707cbccae00be663a9b9131 Status: Downloaded newer image for centos:latest
取得できたか確認。
docker images REPOSITORY TAG IMAGE ID CREATED SIZE centos latest 36540f359ca3 2 weeks ago 193MB
コンテナを作成します。『docker run -it 【REPOSITORY名】』でいけるようですが、後述でApacheとCentOS7の関係でエラーが起こるので、--privilegedオプションを付けてのコンテナの作成がおススメです。
docker run -it centos [root@6acec634218f /]#
docker run --privileged -d -p 80:80 --name httpd-test centos:centos7 /sbin/init
自動的にコンテナ内にログインされるので、一旦、『Ctrl + P』『Ctrl + Q』 でコンテナから抜けます。コンテナの確認。
docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 6acec634218f centos "/bin/bash" 16 seconds ago Up 17 seconds vibrant_euclid
コンテナに再びログインします。『docker exec -it 【コンテナNAME】』でいけます。attachコマンドでもいけます。
docker exec -it vibrant_euclid
コンテナにログインできたら、CentOSのバージョンを確認してみます。
cat /etc/redhat-release CentOS Linux release 7.3.1611 (Core)
とりあえず、CentOS7.3の用意までできました。
Apache2.4.27インストールに必要なライブラリのインストール
CentOS7.3に、Apache2.4.27をソースでインストールするために必要なツールをインストールしていきます。
開発ツールのインストール
yum -y groupinstall base yum -y groupinstall development
OpenSSL 1.1.0 のインストール
OpenSSLのコンパイルに必要なツールをインストール。
yum -y install zlib-devel yum -y install perl-core
OpenSSLのインストール。
cd /usr/local/src/ wget https://www.openssl.org/source/openssl-1.1.0f.tar.gz tar xvzf openssl-1.1.0f.tar.gz cd openssl-1.1.0f/ ./config --prefix=/usr/local/openssl-1.1.0f shared zlib make depend make make test make install
make testでエラーが出てるのが気になりますね。makeではエラーが出なかったので、OpenSSL1.1.0 のライブラリにパスを通しました。
echo /usr/local/openssl-1.1.0f/lib > /etc/ld.so.conf.d/openssl110f.conf ldconfig
Nghttp2 のインストール
HTTP/2(mod_http2)のコアエンジン Nghttp2 をインストールします。 Nghttp2 が必要とするライブラリのインストール
yum -y install libev-devel c-ares-devel
Nghttp2 のダウンロード
バージョンアップが頻繫に行われているようなので、バージョンの確認をしたほうが良いようです。
https://github.com/nghttp2/nghttp2/releases/tag/v1.24.0
cd /usr/local/src/ wget https://github.com/nghttp2/nghttp2/releases/download/v1.24.0/nghttp2-1.24.0.tar.gz
Nghttp2 のインストール。環境変数 OPENSSL_CFLAGS と OPENSSL_LIBS に先ほどインストールした、OpenSSL1.1.0 のディレクトリパスを指定してコンパイルします。
tar xvzf nghttp2-1.24.0.tar.gz cd nghttp2-1.24.0/ env OPENSSL_CFLAGS="-I/usr/local/openssl-1.1.0f/include" OPENSSL_LIBS="-L/usr/local/openssl-1.1.0f/lib -lssl -lcrypto" ./configure -enable-app make make install
/usr/local/lib 以下に「libnghttp2」がインストールされますので、こちらもライブラリのパスに追加しておきます。
echo /usr/local/lib > /etc/ld.so.conf.d/usr-local-lib.conf ldconfig
Apache2.4.27のコンパイルに必要なツールをインストール
yum -y install pcre-devel yum -y install expat-devel
Apache 2.4系をソースコードからインストールする場合は、ARP と ARP-util が必要になりますので、インストールしておきます。
cd /usr/local/src/ wget http://ftp.jaist.ac.jp/pub/apache//apr/apr-1.6.2.tar.gz tar xvzf apr-1.6.2.tar.gz cd apr-1.6.2/ ./configure make make install
「./configure」のとこで『rm: cannot remove 'libtoolT': No such file or directory config.status: executing default commands』ってのが出たのが気になるけど、GO!make。
ARP-util
cd /usr/local/src/ wget http://ftp.jaist.ac.jp/pub/apache//apr/apr-util-1.6.0.tar.gz tar xvzf apr-util-1.6.0.tar.gz cd apr-util-1.6.0/ ./configure --with-apr=/usr/local/apr make make install
Apache httpd 2.4.27 (mod_http2) のインストール
cd /usr/local/src/ wget http://ftp.riken.jp/net/apache//httpd/httpd-2.4.27.tar.gz
ダウンロードしたソースコードを解凍して、ディレクトリを移動します。
tar xvzf httpd-2.4.27.tar.gz cd httpd-2.4.27/
HTTP/2 を使うために必要なモジュール mod_http2 と mod_ssl を有効にし、--with-ssl オプションで、OpenSSL1.1.0 のディレクトリパスを指定してコンパイル&インストールします。
./configure \ --enable-http2 \ --enable-ssl \ --with-ssl=/usr/local/openssl-1.1.0f \ --enable-so \ --enable-mods-shared=all \ --enable-mpms-shared=all make make install
インストールされたか確認
/usr/local/apache2/bin/httpd -V
自己署名のSSLサーバー証明書の作成(HTTPS用)
httpsを利用したい場合は、SSLサーバー証明書を作成する必要があるようです。
秘密鍵の作成
openssl genrsa 2048 > server.key
CSR(証明書署名要求)の作成(入力するのは2箇所だけです)
openssl req -new -key server.key > server.csr You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [XX]:JP State or Province Name (full name) []: Locality Name (eg, city) [Default City]: Organization Name (eg, company) [Default Company Ltd]: Organizational Unit Name (eg, section) []: Common Name (eg, your name or your server's hostname) []:www.exp^Hample.com Email Address []: Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []: An optional company name []:
SSLサーバー証明書の作成(有効期限10年)
openssl x509 -days 3650 -req -signkey server.key < server.csr > server.crt
mv -i server.key /etc/pki/tls/private/ mv -i server.crt /etc/pki/tls/certs/
パーミッションを変更
chmod 600 /etc/pki/tls/private/server.key chmod 600 /etc/pki/tls/certs/server.crt
CSRを削除
rm server.csr
Apache httpd の設定
オリジナルの設定ファイルをバックアップ
mv -i /usr/local/apache2/conf/httpd.conf /usr/local/apache2/conf/httpd.conf.org mv -i /usr/local/apache2/conf/extra/httpd-ssl.conf /usr/local/apache2/conf/extra/httpd-ssl.conf.org
・設定ファイルを作成します
httpd.conf
vim /usr/local/apache2/conf/httpd.conf
Apache httpd 2.4.27 + mod_http2 インストールメモ | あぱーブログ さんの設定を使わせてもらいましょう。
⇩ httpd.conf
・https://blog.apar.jp/wp-content/uploads/2017/07/httpd_conf_20170717.txt
vim /usr/local/apache2/conf/extra/httpd-ssl.conf
https://blog.apar.jp/wp-content/uploads/2017/07/httpd_ssl_conf_20170717.txt
systemd サービスファイルの作成
Apache httpd 用の systemd サービスファイル(起動スクリプトのようなもの)を作成します。systemctlコマンドを自作するみたいですね。
vim /etc/systemd/system/httpd.service
ファイルが新しく作成されて、vimエディタで開けたら、
[Unit] Description=The Apache HTTP Server After=network.target remote-fs.target nss-lookup.target [Service] Type=forking ExecStart=/usr/local/apache2/bin/apachectl start ExecReload=/usr/local/apache2/bin/apachectl graceful ExecStop=/usr/local/apache2/bin/apachectl stop [Install] WantedBy=multi-user.target
をファイルに張り付けて『:wq』コマンドで保存。作成したサービスファイルを systemd に反映
systemctl daemon-reload
エラー!!!
Failed to get D-Bus connection: Operation not permitted
どうやら、Docker特有のエラーみたいです。
・Linux - Docker上でApacheが起動できない(34023)|teratail
ということで、一旦、コンテナを停止してこれまでのコンテナの内容をイメージとして保存します。
・Dockerの作業済みコンテナからイメージを作って移植を楽にする - Qiita
まずは、コンテナを抜け、コンテナを停止します。
exit docker stop vibrant_euclid
確認。
docker ps -a CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 6acec634218f centos "/bin/bash" 3 hours ago Exited (137) 10 seconds ago vibrant_euclid 2a5a62b662b4 centos "/bin/bash" 3 hours ago Exited (0) 3 hours ago centos7
停止したDockerコンテナからイメージを作ります。『docker commit 【コンテナNAME】【REPOSITORY】:【TAG】』でいけます。
docker commit vibrant_euclid my_repository:httpd_test
イメージができたか確認。
docker images REPOSITORY TAG IMAGE ID CREATED SIZE my_repository httpd_test dbb2513a2047 14 seconds ago 1.14GB centos latest 36540f359ca3 2 weeks ago 193MB
新しくイメージができたので、今までの使ってきたコンテナを削除します。コンテナの削除は、『docker rm 【コンテナID】』でいけるようです。
docker rm 6acec634218f 6acec634218f
続いて、--privilegedコマンド付きで新しくコンテナを作成します。『docker run --privileged -d -p 【外部からアクセスされるポート番号】:【コンテナ側のポート番号】 --name 【任意】【REPOSITORY】:【TAG】sbin/init』。「-d」オプションはバックグラウンドで実行とのこと。
docker run --privileged -d -p 80:80 --name "httpd" my_repository:httpd_test sbin/init
コンテナの起動確認。
docker ps CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES 76faef5f92c8 my_repository:httpd_test "sbin/init" 5 minutes ago Up 5 minutes 0.0.0.0:80->80/tcp httpd
コンテナにログイン。
docker exec -it httpd bin/bash
再度、作成したサービスファイルを systemd に反映を試みる。
systemctl daemon-reload
実行できたっぽいので、systemd に反映されているか確認。
systemctl list-unit-files | grep httpd httpd.service disabled
起動
systemctl start httpd

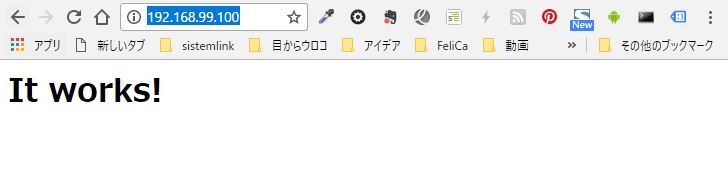

ブラウザからDockerホストのIPアドレス:コンテナのポート番号(『http://192.168.99.100:80/』)にアクセスすると、コンテナ内のApacheにアクセスできます。IP確認は、
docker-machine ls NAME ACTIVE DRIVER STATE URL SWARM DOCKER ERRORS default - virtualbox Running tcp://192.168.99.100:2376 v17.05.0-ce kusanagi-machine - virtualbox Stopped Unknown
でいけるようです。『URL』の部分の『192.168.99.100』がIPアドレスっぽいです。
自動起動設定
systemctl enable httpd Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /etc/systemd/system/httpd.service.
止めるときは、
systemctl stop httpd
で止まります。
firewalld設定
firewalldが入っていなかったので、firewalld をインストール。
iptables と共存できないってところが気にはなりますが、インストール。
yum -y install firewalld systemctl start firewalld
HTTP(80/tcp) と HTTPS(443/tcp) を開けておきます。
firewall-cmd --add-port=80/tcp --permanent firewall-cmd --add-port=443/tcp --permanent firewall-cmd --reload
確認
firewall-cmd --list-all public target: default icmp-block-inversion: no interfaces: sources: services: dhcpv6-client ssh ports: 443/tcp 80/tcp protocols: masquerade: no forward-ports: sourceports: icmp-blocks: rich rules:
『ports: 443/tcp 80/tcp』となっていればOK。Apache(httpd)の80番ポートでアクセスできるか確認
systemctl start httpd
大丈夫のようです。
ログのローテーション設定
設定ファイルを作成します
vim /etc/logrotate.d/httpd
ファイルが開くので編集。
/usr/local/apache2/logs/*log { daily missingok dateext rotate 60 create 644 daemon daemon sharedscripts postrotate /bin/systemctl reload httpd.service > /dev/null 2>/dev/null || true endscript }
保存します。
・確認します
logrotate -dv /etc/logrotate.d/httpd reading config file /etc/logrotate.d/httpd Allocating hash table for state file, size 15360 B Handling 1 logs rotating pattern: /usr/local/apache2/logs/*log after 1 days (60 rotations) empty log files are rotated, old logs are removed considering log /usr/local/apache2/logs/access_log log does not need rotating (log has been already rotated)considering log /usr/local/apache2/logs/error_log log does not need rotating (log has been already rotated)not running postrotate script, since no logs were rotated
なんとか最後までできたようです。
Apache httpd 2.4.27 + mod_http2 インストールメモ | あぱーブログ さんのブログが無かったら確実にできなかったですね、ありがたやー、ありがたや。
久々に、Docker触ったら、かなり忘れてました、オーマイガー!定期的に触れるようにしないとですね。
今回はこのへんで。
